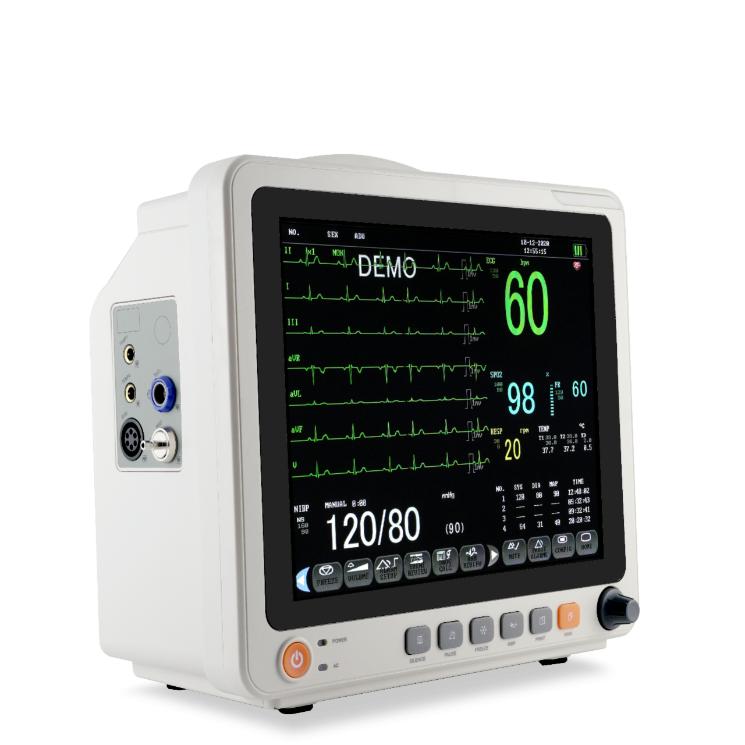

12-inch Multiparameter Patient Monitor

Brand: Medworld Electronics
Model: MW600

Features:
 High-resolution touch-screen for easy operation
 12.1-inch color display with 800*600 resolution.
 USB interfaces support easy software upgrade
 Three Working Modes: Monitoring, Surgery and Diagnosis.
 Multi-display modes suitable for different applications:
 Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend.
 Built-in high capacity battery up to 2 hours of continuous work
 VGA output for external display

TECHNICAL SPECIFICATIONS:
ECG
 Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)
 Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
 Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
 Resolution: 1 BPM
 Accuracy: ±1%
 Sensitivity >200 uV(Peak to peak)
 ST measurement range: -2.0 ~ +2.0 mV

 Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is
 greater
 Other Range: unspecified
 Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
 Bandwidth:
 Diagnostic: 0.05~130 Hz
 Monitor: 0.5~40 Hz
 Surgery: 1~20 Hz

SPO2
 Measuring Range: 0 ~ 100 %
 Resolution: 1%
 Accuracy: 70% ~ 100% (±2 %)
 Pulse Rate: 20-250 BPM
 Resolution: 1 BPM
 Accuracy: ±3 BPM
NIBP
 Method: Oscillometry
 Measure mode: Manual, Auto, STAT
 Unit: mmHg, kPa
 Measure and alarm range:
 Adult Mode
 SYS 40 ~ 280 mmHg
 DIA 10 ~ 225 mmHg
 MEAN 20 ~ 240 mmHg
 Pediatric Mode
 SYS 40 ~ 220 mmHg
 DIA 10 ~ 160 mmHg
 MEAN 20 ~ 170 mmHg
 Neonatal Mode
 SYS 40 ~ 135 mmHg
 DIA 10 ~ 100 mmHg
 MEAN 20 ~ 110 mmHg
 Resolution: 1mmHg
 Accuracy: ±5mmHg

Optional Parameters:
 Dual IBP Module
 Etco2 Module
 Recorder ( Printer)
 Central monitoring system Nellcor SpO2;
 Sun Tech NIBP

TEMP:
 Measure and Alarm Range: 0 ~ 50 C
 Resolution: 0.1C
 Accuracy: ±0.1C
Standard Parameters:
 ECG, RESP, TEMP, NIBP, SPO2, PR

RESP:
 Method: Impedance between RA-LL or RALA
 Measurement Range:
 Adult: 10 ~ 120 BrPM
 Neonatal / Pediatric: 7 ~ 150 BrPM Resolution: 1 BrPM
 Accuracy: ±2 BrPM

Packing:
 Single package size: 37*28*36cm Single gross weight: 4.5 KG
 4 unit per carton, package size: 58*39*75cm, total gross weight 20 KG
